> Product > HORIZONTAL CUTTING MACHINE w/ AUTO STACKING

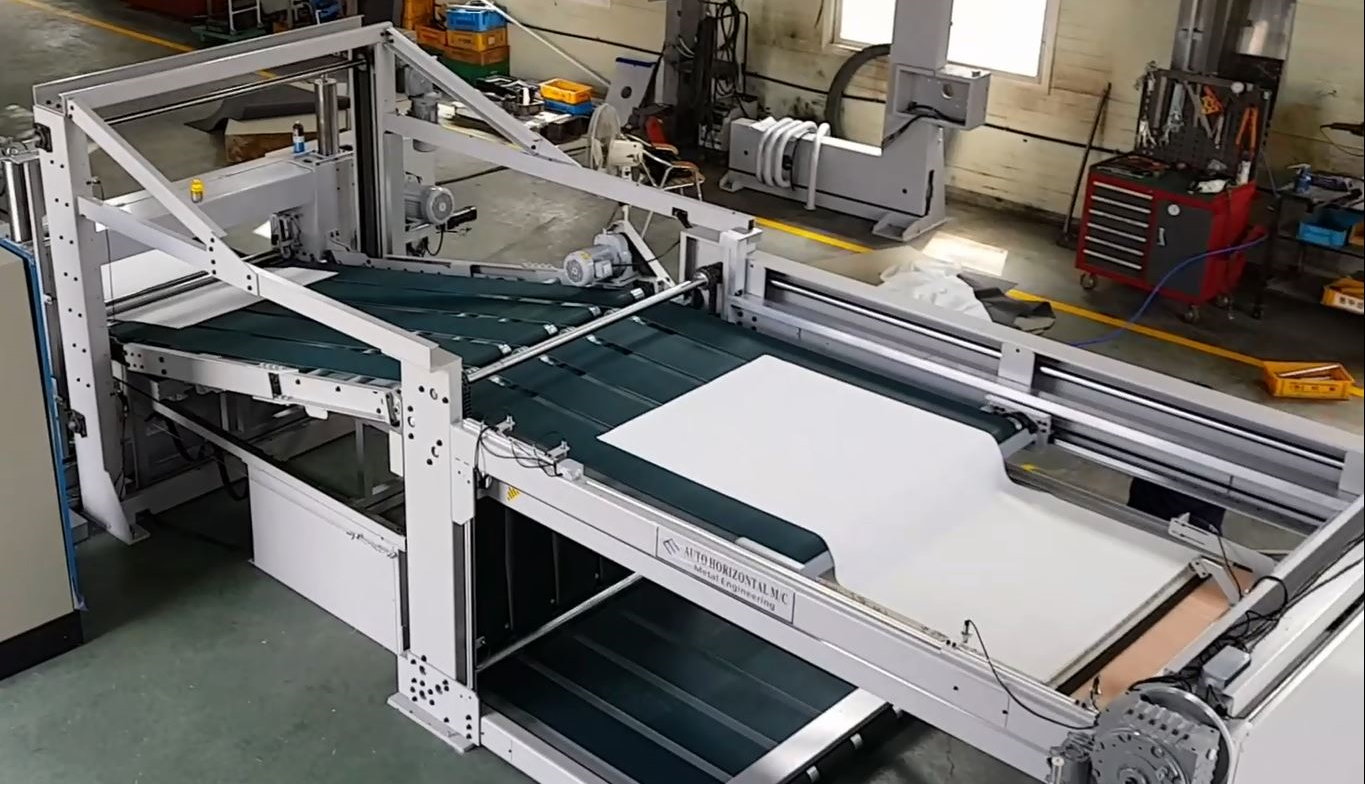

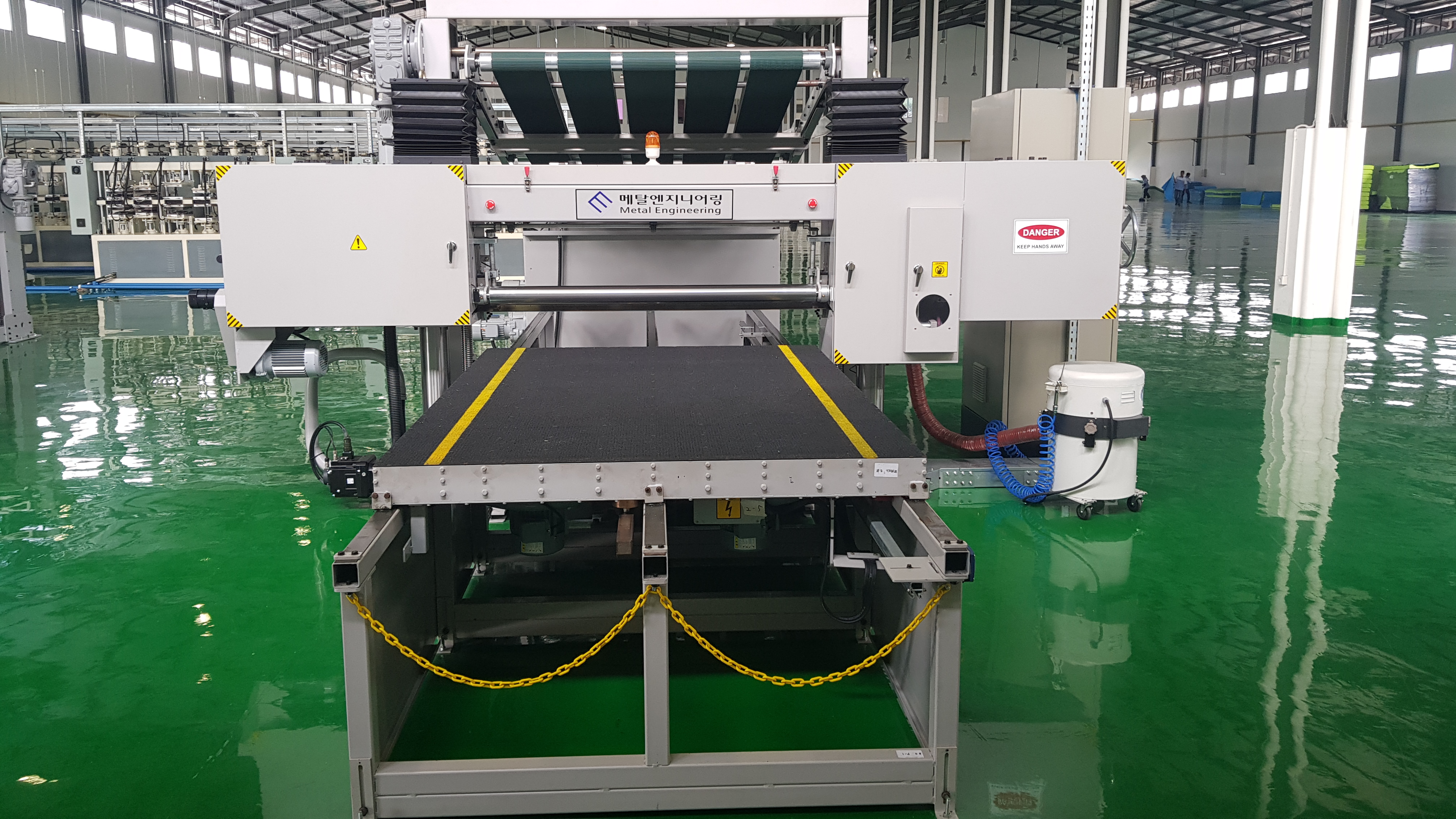

HORIZONTAL CUTTING MACHINE w/ AUTO STACKING
  • HORIZONTAL CUTTING MACHINE w/ AUTO STACKING cuts the urethane foam block horizontally and stacks the goods automatically.
  • Reduction of labor cost and production time by auto stacking.
Flexible Foam High Density Foam Rigid Foam EVA Foam Memory Foam

Specification of Machine

Working Speed Max. 70m/min
Tolerance ±0.1mm
Stacking Error ±5mm
Length of Block Max. 5m
Cutting Thickness Max. 5mm
Operation Panel Touch Screen
Head up-down Servo Motor Drive Control
Total Power 22.5 kw
Automatic Counting System
Table Vacuum System
Knife Grinding and Dust Collector
