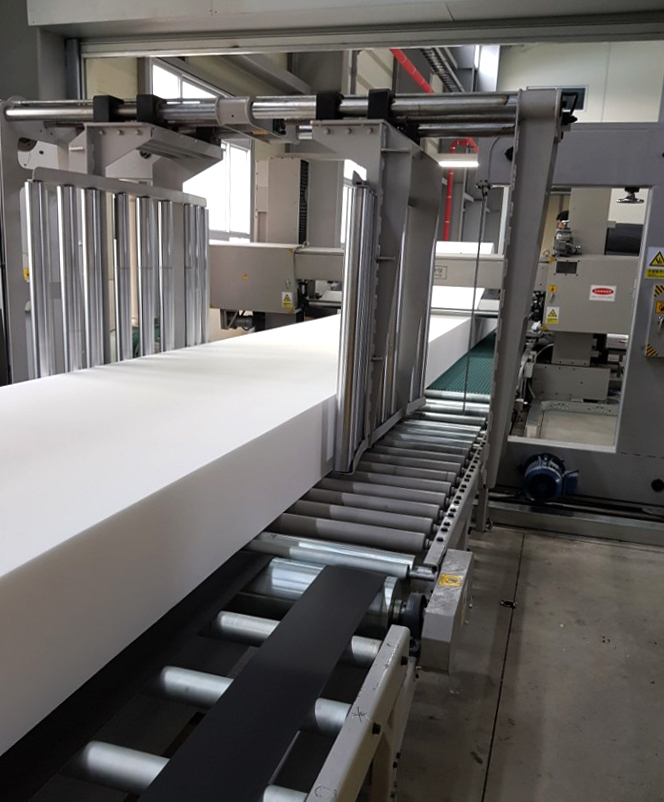

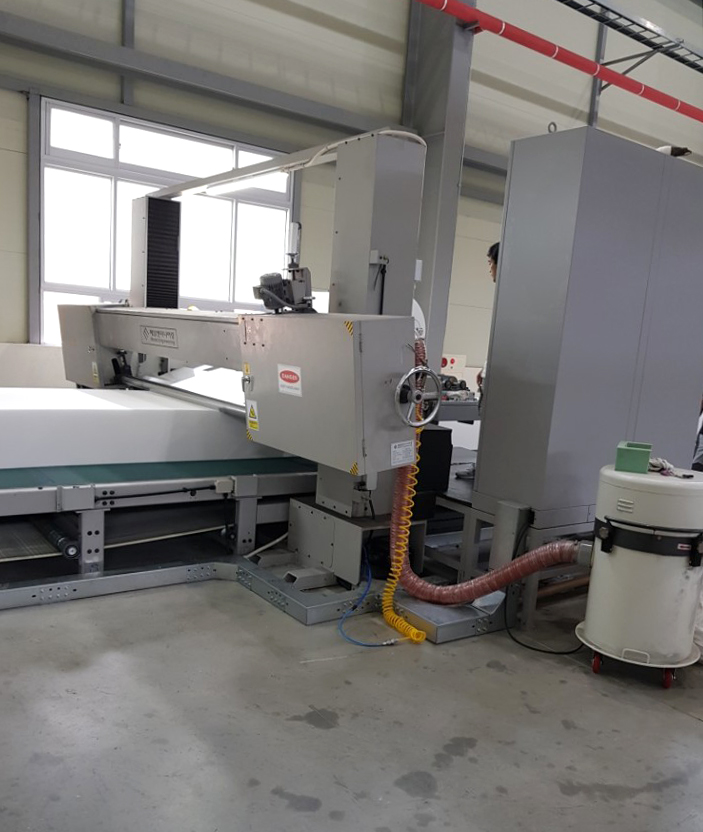

50m HORIZONTAL CUTTING MACHINE
  • 50m HORIZONTAL CUTTING MACHINE cuts the urethane foam block horizontally.
  • It makes the urethane block to sheet or roll type products
  • 50m horizontal cutting machine use 50m moving plate for table, in case of automatic winding type use belt conveyor for table.
Flexible Foam High Density Foam Rigid Foam EVA Foam Memory Foam

Specification of Machine

Working Speed Max. 60m/min
Cutting Thickness 1~150mm
Error Range ±0.1mm
Operation Panel Touch Screen
Head up-down Servo Motor Drive Control
Total Power 31.3 kw
Automatic Counting System
Table Vacuum System
Knife Grinding and Dust Collector
Option For High Density, Rigid Foam
Automatic Winding
